MPT-1. Assess Threat Tactics & Techniques + Identify Coverage Gaps

---

Skip threat/gap assessment for rapid deployment

This planning task may be skipped for the sake of rapid deployment at the cost of confidence that you are collecting the correct logs to fully detect you targeted threat.

note

• All data collection planning artifacts should be saved on the Fileserver SMB Share under /MISSION/01_PLANNING/02_DATA_COLLECTION_PLAN/ for standardization of location and access
• Depending on the team's preference, related lists and CSV files can be either saved as individual files or combined as sepearate worksheets in an XLSX workbook

---

1.1. Identify known MITRE ATT&CK Techniques

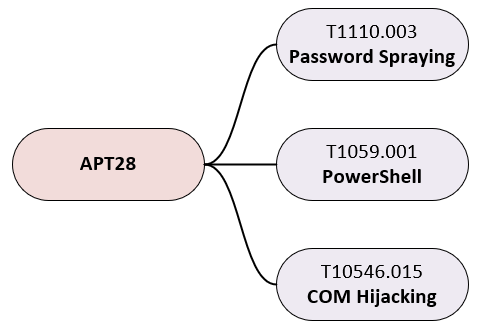

Profile the targeted threat based on available intelligence in order to map their known tactics and techniques

Sub-tasks:

• Create a list of all MITRE ATT&CK techniques that are attributed to the target threat
• Research the threat to identify potential indicator sources not specified by existing MITRE ATT&CK techniques (ie. application specific log files)

Required Inputs	Expected Outputs
Targeted threats	List of all MITRE ATT&CK Techniques related to targeted threat

Example

threat_techniques.csv
ID	Name
T1059.001	PowerShell
T1134.001	Token Impersonation/Theft
T1606.002	SAML Tokens
T1046	Network Service Discovery
T1619	Cloud Storage Object Discovery

---

1.2. Deprioritize irrelevant MITRE ATT&CK Techniques

Prioritize techniques that are actually employable against the mission partner environment and filter out the rest

Sub-tasks:

• Exclude techniques that are not relevant to the environment (ie. remove MacOS techniques for all-Windows environment)

Required Inputs	Expected Outputs
List of all MITRE ATT&CK Techniques related to targeted threat	List of prioritized MITRE ATT&CK Techniques relavent to environment

Example

In this example, the techniques T1606.002: SAML Tokens and T1619: Cloud Storage Object Discovery were removed because the monitored network is not a cloud environment.

prioritized_threat_techniques.csv
ID	Name
T1059.001	PowerShell
T1134.001	Token Impersonation/Theft
T1046	Network Service Discovery

---

1.3. Identify relavent MITRE ATT&CK Data Components

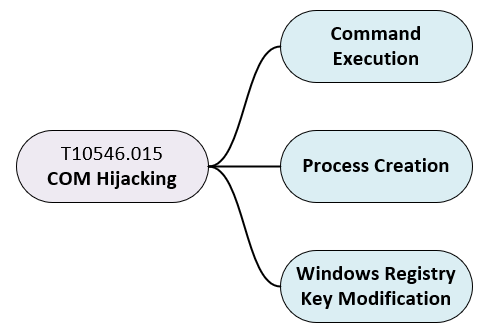

Map prioritized techniques to their corresponding MITRE ATT&CK Data Components

Sub-tasks:

• Translate the prioritized techniques to all the Data Components that can be used to detect them
• Deduplicate the resulting list of Data Components

Required Inputs	Expected Outputs
List of prioritized MITRE ATT&CK Techniques relavent to environment	List of all de-duplicated Data Components that can be used to detect the target threat

Tip/Example

The ConvertTo-DataComponents.psm1 script can be used to convert a list of Technique IDs to a list of Data Components:

1. Copy the Convert-DataComponents.psm1 script (found in \\fileserver\share\share\SCRIPTS\262COS-MITRE_ATTACK_Scripts-PACKAGE-001\) to your Windows host
2. Open a PowerShell terminal, navigate to the script location, and import the script as a module:

   Import-Module -Force .\Convert-DataComponents.psm1

3. Run the Convert-DataComponents script against the file containing the list of MITRE ATT&CK technique and sub-technique IDs to convert it to a CSV of matchingData Components:

   ConvertTo-DataComponents -Techniques ".\technique_list.txt" -Output ".\threat_data_components.csv"

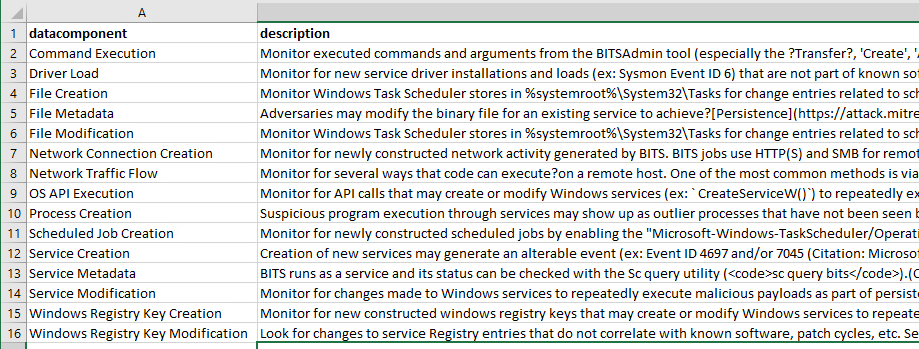

threat_data_components.csv

---

1.4. Identify Data Component coverage gaps

note

Carefully review the Data Components identified as gaps in order to verify that they are actually needed to detect your specific threat. Remember that the lack of a particular Data Component does not mean that a Technique cannot be detected, and that one or more Data Components can indivudally be used to detect the same Technique.

For example, CVA/H does not natively collect logs relating to the Data Component Cloud Service: Cloud Service Enumeration, which can be used to detect the T1046: Network Sevice Discovery technique - but CVA/H can still detect this Technique using either the Command Execution or Network Traffic Flow Data Component logs, if you are not hunting for a cloud-based threat.

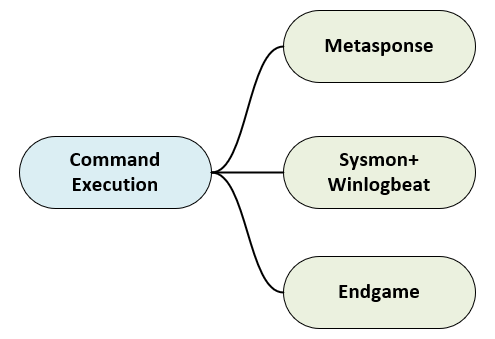

Identify required Data Components that are not collected by CVA/H agents that are commonly deployed (Sysmon, Winlogbeat, Auditbeat, Endgame)

Sub-tasks:

• Refer to the APPENDIX - CVA/H Capability / Data Component Mapping to identify available collection capabilities
• Filter out Data Components that are already covered by the CVA/H capabilities you plan to employ

Required Inputs	Expected Outputs
List of all de-duplicated Data Components that can be used to detect the target threat	List of Data Components that require a custom collection not covered by commonly deployed CVA/H agents (Sysmon, Winlogbeat, Auditbeat, Endgame)

Example

CVA/H lacks built-in cloud data collection capabilities, so cloud related Data Components will always be a gap (unless a custom ingest to Logstash is engineered) - but it is important understand where your collection will be lacking.

data_component_gaps.csv
datacomponent	description
Cloud Service: Cloud Service Metadata	Contextual data about a cloud service and activity around it such as name, type, or purpose/function
Cloud Storage: Cloud Storage Metadata	Contextual data about cloud storage infrastructure and activity around it such as name, size, or owner
Volume: Volume Metadata	Contextual data about a cloud volume and activity around it, such as id, type, state, and size

---

1.5. Identify collection gaps coverable by Filebeat

note

Application logs, such as web server logs, are often missed by CPTs for collection and can aid in threat detection. Carefully review details about the mission partner network to identify services that may generate file-based logs that could indicate malicious activity.

Identify gaps filled by MRT-C file-based application logs that need to be collected via Filebeat

Sub-tasks:

• Identify required file-based application logs on MRT-C that can aid in threat detection
• Research Filebeat capabilities and configurations that would enable the collection of the identified file-based application logs

Required Inputs	Expected Outputs
Identified MRT-C applications and endpoints that generate file-based logs	List MRT-C endpoints, their application log types, and log file locations to be collected by Filebeat

Example

filebeat_targets.csv
Hostname	IP Address	Operating System	Filebeat Module	Log Files
WS-03	10.0.0.0/24 (DHCP)	RHEL 8	apache	/path/to/log/apache/access.log*
SVR-01	10.0.0.10	Windows Server 2012 R2	iis	C:\inetpub\logs\LogFiles\W3SVC**.log

---

1.6. Identify collection gaps coverable by Syslog forwarding

note

Although rare, some custom applications may log to Syslog, but not to any file-based logs. Syslog is also commonly used to collect logs from network devices and infrastructure that may not be covered by CVA/H agents.

Identify MRT-C that generate logs that cannot be collected by any CVA/H agent, but are captured by Syslog

Sub-tasks:

• Identify required logging Facilities on mission partner endpoints that cannot be collected by any CVA/H agent
• Research system-specific Syslog log forwarding capabilities to plan for reconfiguring to stream back to CVA/H

Required Inputs	Expected Outputs
Identified MRT-C applications and devices that are capable of Syslog, and do not log to any location collected by CVA/H agents	List MRT-C endpoints, their application log types, and log file locations to be collected by Filebeat

Example

syslog_targets.csv
Hostname	IP Address	Operating System	Syslog Type
WS-03	10.0.0.0/24 (DHCP)	RHEL 8	rsyslog
SW-01	10.0.0.254	Cisco IOS	syslog
FW-01	10.0.0.1	FreeBSD	syslog-ng

---
