OPERATION: PCAP Ingest

1. Start Elastic + supporting services​

  1. Ensure the Elastic and support services (kibana, elasticsearch, logstash, filebeat, arkime-viewer) are started:

    sudo systemctl start elastic.target

    NOTE: These services are set to auto-start on boot due to systemctl enable elastic.target being ran during installation

  2. You can also verify by accessing the web interfaces of Kibana (https://localhost:5601) and Arkime (https://localhost:8005)

    NOTE: Username: assessor | Password: elastic

2. Run 262cos_dmip_ingest_pcap.sh against PCAP file​

info

262cos_dmip_ingest_pcap.sh is created by 262cos_install_dip_on_mip.sh during installation, and is used to read PCAP files for ingest by (Zeek, Suricata, Arkime) while preserving timestamps and sending logs through Elastic pipelines.

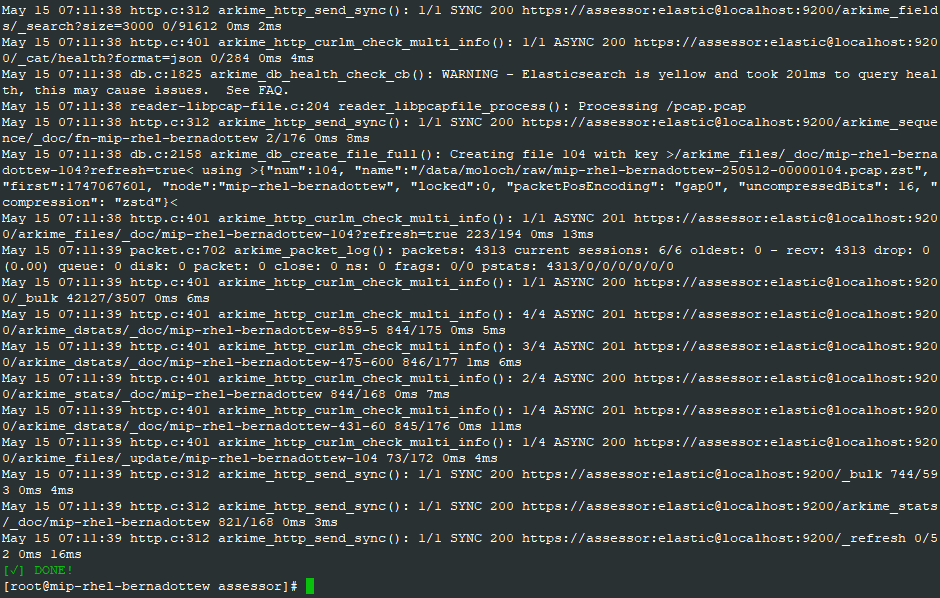

sudo 262cos_dmip_ingest_pcap.sh <PCAP_FILE>

NOTE: Do not be alarmed by Suricata's SC_ERR_INVALID_SIGNATURE errors - this is normal if you are using the ET PRO ruleset as there are many duplicate rules.

3. Monitor in Kibana / Arkime​

Access the web interfaces of Kibana (https://localhost:5601) and Arkime (https://localhost:8005)

NOTE: Username: assessor | Password: elastic
