PowerShell Remoting

note

PowerShell remoting requires that the remote host have PowerShell installed and the WinRM service (5985/TCP[HTTP] or 5986/TCP[HTTPS]) accessible over the network.

PS Remoting can be used to execute commands, as well as transfer files over WinRM (without SMB).

Preparation

Step 1: Enable PS Remoting

note

This step only needs to be accomplished once to initially configure the system you will be initiating remote PowerShell connections from.

info

Enable-PSRemoting enables PowerShell remoting on the computer by performing a series of configuration tasks on the host. Most of these tasks are not needed for the purpose of connecting to other remote hosts, except for the creation of the Windows Remote Management (HTTP-In) firewall rule - this rule is not functionally needed, but Windows checks for its existence before allowing any remote PowerShell interactions regardless of the actual state of the firewall.
Set-Item "WSMan:\localhost\Client\TrustedHosts" -Value "*" allows the computer to establish WinRM connections to any remote host, otherwise Windows will prevent the outbound connection. This is only necessary when a host such as the MIP Win10 VM, attempts to establish a remote PowerShell session with a remote host in another domain or directly to an IP address.

Open a administrative PowerShell ISE console

First, enable PS Remoting:

Enable-PSRemoting -Force
Set-Item "WSMan:\localhost\Client\TrustedHosts" -Value "*" -Force

Step 2: Save Credentials

INFO: Username Syntax

Domain usernames need to be input in either <DOMAIN>\<USERNAME> or <USERNAME>@<DOMAIN> format. Leaving out the domain portion will make the remote host assume that you are attempting to authenticate with a local user account.

TIP: CAC Credentials

The Get-Credential cmdlet can also handle the usage of CAC credentials:

Save credentials in a re-usable variable object:
```
$Credential = Get-Credential
```

Step 3: Test PS Remoting and Credentials

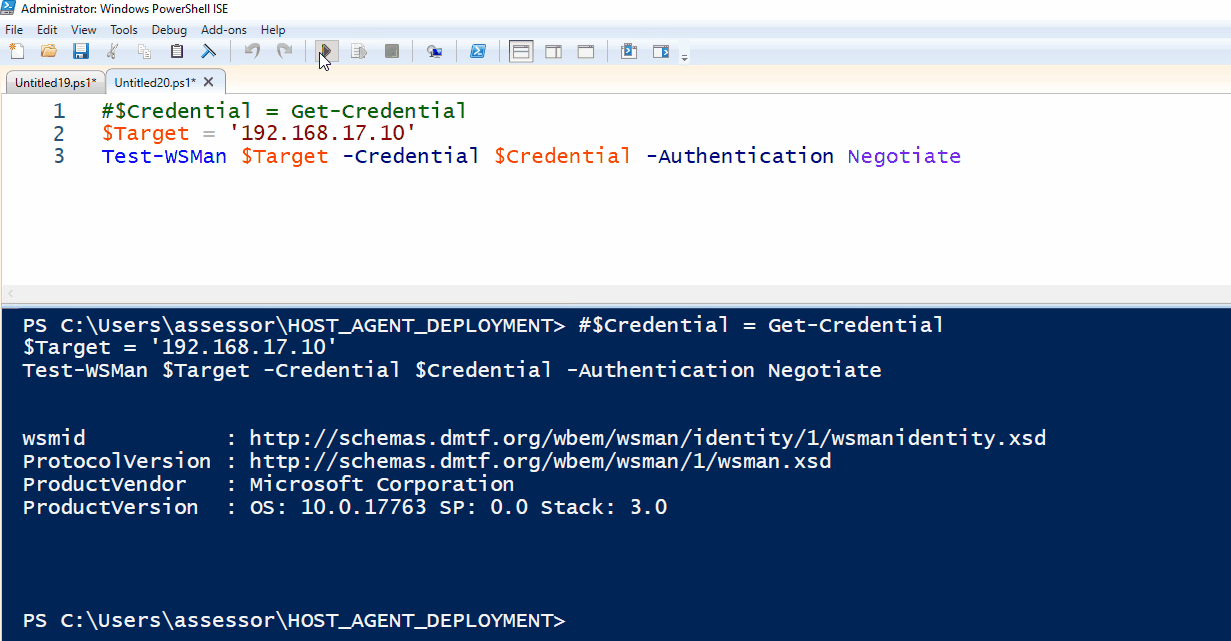

Test accessibility to WinRM and credentials on the target host:
```
$Target = '<IP/FQDN>'
Test-WSMan $Target -Credential $Credential -Authentication Negotiate
```
Troubleshooting: Test-WSMan
For some remote hosts, you may need to provide the -Authentication Negotiate option (or some another -Authentication variation) to specify you authentication schema. Also, the fact that this error was even returned indicates that the remote host does have WinRM accessible.

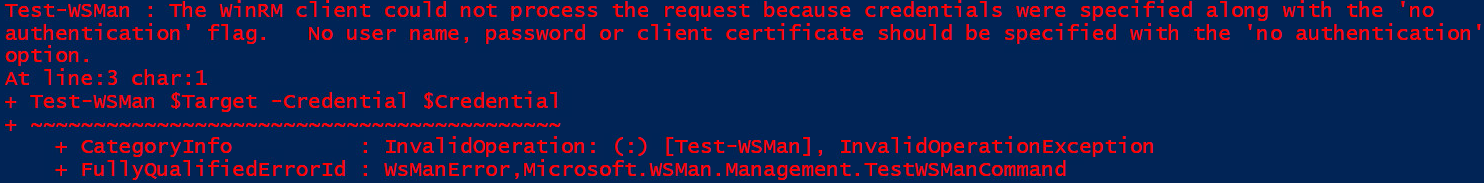

Missing -Authentication flag error:

Troubleshooting: Access Denied
An Access is denied error indicates that the remote host does have WinRM accessible, but either the credentials are incorrect or the user legitimately does not have permissions to perform network logons on the remote host.

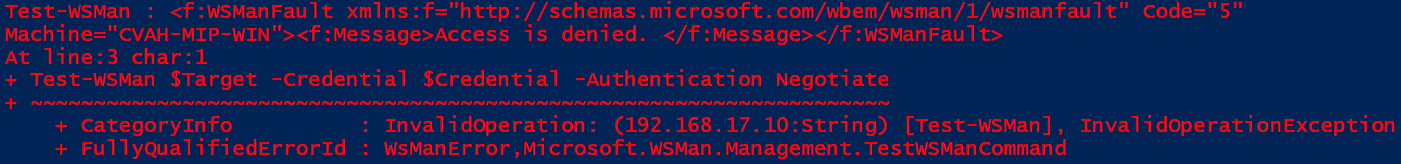

Access is denied error:

Step 4: PSSession Creation

info

The $PSSession variable can be used and re-used to execute remote commands/scripts, dive into interactive shells, as well as to copy files.

Establish a remote PowerShell session and save it to a re-usable variable object:
```
$SessionOption = New-PSSessionOption -MaximumReceivedObjectSize 1GB -OperationTimeout 0
$PSSession = New-PSSession -ComputerName $Target -Credential $Credential -SessionOption $SessionOption
```
New-PSSessionOption
- -MaximumReceivedObjectSize allows you to transfer files larger than the default value of 200MB
- -OperationTimeout 0 prevents PowerShell from killing your command/file transfer if it take longer than the default 180000 milliseconds (3 minutes)
Cleanup Unused Sessions
In order to not leave open hanging PS sessions, cleanup after yourself with this command:
Remove-PSSession $PSSession

Command Execution

Interactive Remote Shell

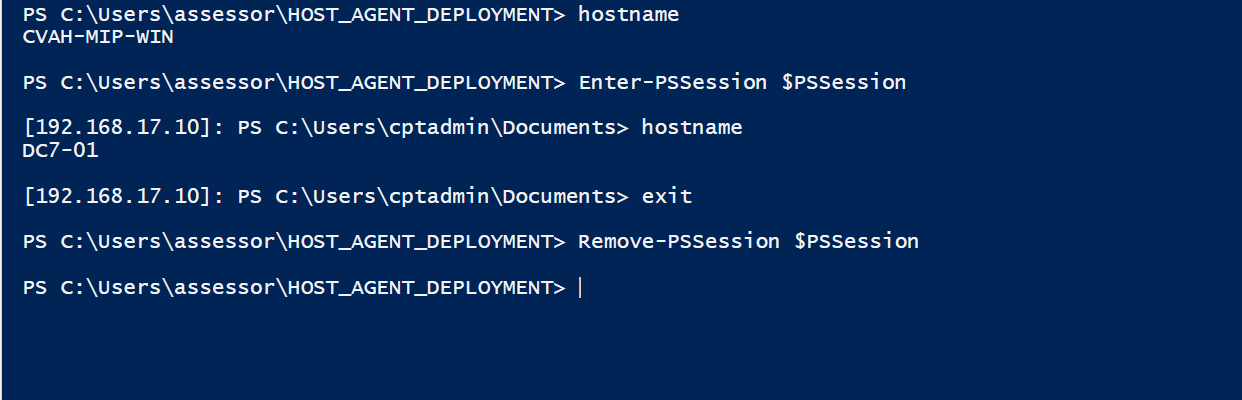

Interacting with the remote PowerShell session:
```
Enter-PSSession $PSSession
```
tip
While in a remote interactive PowerShell session, just enter exit to drop out of the session.

Non-Interactive Remote Command Execution

Invoke-Command usage is simple for executing remote PowerShell commands:

Invoke-Command -Session $PSSession {
    <COMMANDS>
}

Passing Arguments

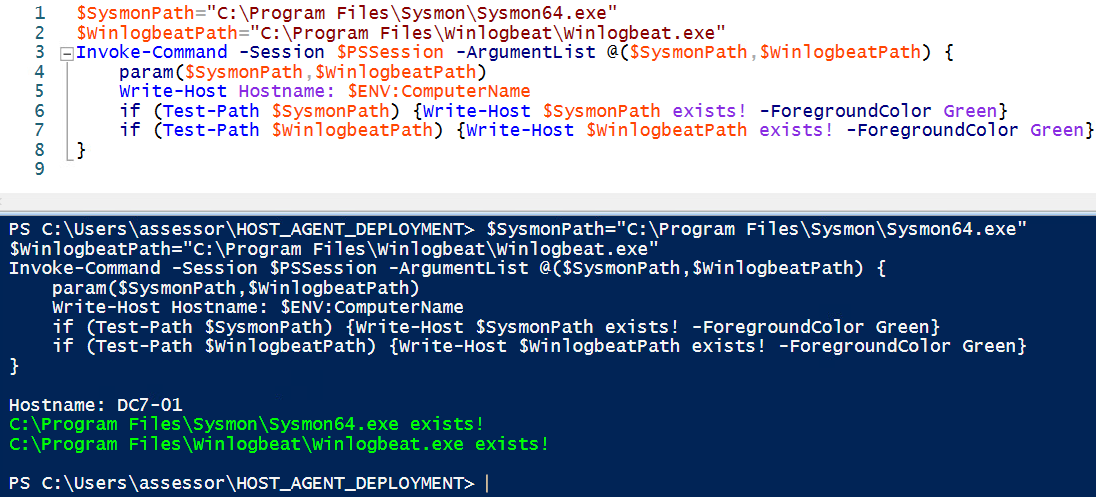

The -ArgumentList option can be used to pass in arguments as if the Invoke-Command scriptblock were a function. This is useful since variables within your local PowerShell session do not cross over to the remote session, and vice-versa. For example:

$SysmonPath="C:\Program Files\Sysmon\Sysmon64.exe"
$WinlogbeatPath="C:\Program Files\Winlogbeat\Winlogbeat.exe"
Invoke-Command -Session $PSSession -ArgumentList @($SysmonPath,$WinlogbeatPath,42) {
    param($SysmonPath,$WinlogbeatPath,$SomeRandomNumber)
    Test-Path $SysmonPath
    Test-Path $WinlogbeatPath
    Write-Host $SomeRandomNumber
}

NOTE: The ordering of the -ArgumentList arguments directly corresponds to the ordering of the recieved param() arguments within the scriptblock

File Transfer

Copy-Item can use a PSSession to transfer items to (-ToSession) or from (-FromSession) remote hosts:

File Upload

Copy-Item -ToSession $PSSession -Path .\Sysmon64.exe -Destination "C:\Program Files\Sysmon\"

File Download

Copy-Item -FromSession $PSSession -Path "C:\Windows\Temp\malware.exe" -Destination .\
