MS Excel DDE Formulas

DDE (Dynamic Data Exchange) elements are an attacker's alternative to MS Office Macros with the same end result of executing malcious commands. This "macro-less" technique picked in popularity because historically, security solutions and awareness efforts have heavily focused on macro-based threats. DDE might not trigger the same security alerts or user suspicions as macros would - but now rely on the user clicking "yes" to a new popup after opening the document.

Technique Details​

Requirements​

  • Windows Operating System
  • Microsoft Excel

Targets​

note

Users running Office 365 or MS Office 2016 may not be affected by this attack since DDE execution was disabled by default.

  • Windows user's utilizing Microsoft Excel

Execution Chain​

  1. User receives DDE-laced MS Excel sheet
  2. User opens DDE-laced MS Excel sheet
  3. User is prompted by Excel if they want to run the DDE command
  4. DDE command executes, if the user clicked "yes"

Procedures​

  1. In any cell, enter the following formula (replacing <COMMAND> with the actual commands you want to run, and A1 with the current cell address - this example is the very first top-left cell)

    =MSEXCEL|'\..\..\..\Windows\System32\cmd.exe "/c <COMMAND>"'!A1

    warning

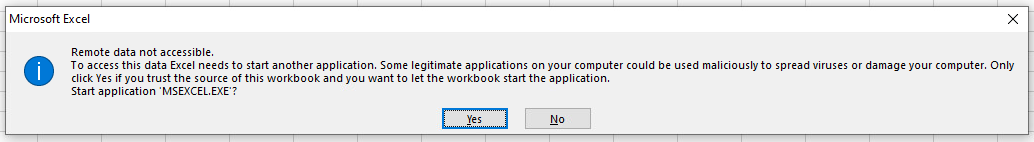

    You will recieve a prompt after entering the formula - click No. This is the same popup that a user will see when they open the Excel document - clicking Yes will cause the command within the formula to execute.

  2. Save the MS Excel document - you now have a maldoc

Hardening​

The following registry key can be set (replacing <VERSION> and <APPLICATION> with the appropriate values) to harden against DDE:

  • Key Path: HKEY_CURRENT_USER\Software\Microsoft\Office\<VERSION>\<APPLICATION>\Options
  • Value Name: DontUpdateLinks
  • Value Type: DWORD
  • Value Data: 1 (disable DDE)

Applications:

  • Excel
  • Word
  • PowerPoint
  • Access
  • Outlook
  • Publisher

Versions:

  • 12.0 (Office 2007)
  • 14.0 (Office 2010)
  • 15.0 (Office 2013)
  • 16.0 (Office 2016+)
